H7
The evolution
ONE
DEVICE
for all irrigation
Robust
The weather-resistant polycarbonate shell combined with the bright color display make the device perfect for use in the field.
The special honeycomb structure, which is strong and lightweight, is specially designed to withstand the working situations that characterize this industry.
The new knob combines the iconic nature of previous models with the latest automotive industry standards for ruggedness, ensuring better accuracy and greater durability.
Specifically designed to work under extreme conditions, it guarantees excellent reliability on all types of machines.
The new knob combines the iconic nature of previous models with the latest automotive industry standards for ruggedness, ensuring better accuracy and greater durability.
Specifically designed to work under extreme conditions, it guarantees excellent reliability on all types of machines.
Fast
New beating heart
Up to
Unprecedented speed
Always connected
Power
AUTONOMY 15 MINUTES
Maintenance
of control functions without
external power supply
NEW PROTECTED
POWER OUTPUTS
From short circuit and/or
voltage overload
ADVANCED DIAGNOSTICS
Of all connected
peripherals
NEW COMMUNICATION INTERFACE
Dual CAN BUS
Opto – isolated RS485
AUTONOMY 15 MINUTES
Maintenance
of control functions without
external power supply
NEW PROTECTED POWER OUTPUTS
From short circuit and/or
voltage overload
ADVANCED DIAGNOSTICS
Of all connected
peripherals
NEW COMMUNICATION INTERFACE
Dual CAN BUS
Opto – isolated RS485
AUTONOMY 15 MINUTES
Maintenance
of control functions without
external power supply
NEW PROTECTED
POWER OUTPUTS
From short circuit and/or
voltage overload
ADVANCED DIAGNOSTICS
Of all connected
peripherals
NEW COMMUNICATION INTERFACE
Dual CAN BUS
Opto – isolated RS485
2 Models
IdroMOP H7
Pumping unit control with endothermic
motor and mechanical pump
Control of irrigation machines with
turbine and hydraulic return
CANBUS for IdroMOP peripherals
LTE-M, NB-IoT and 2G network coverage

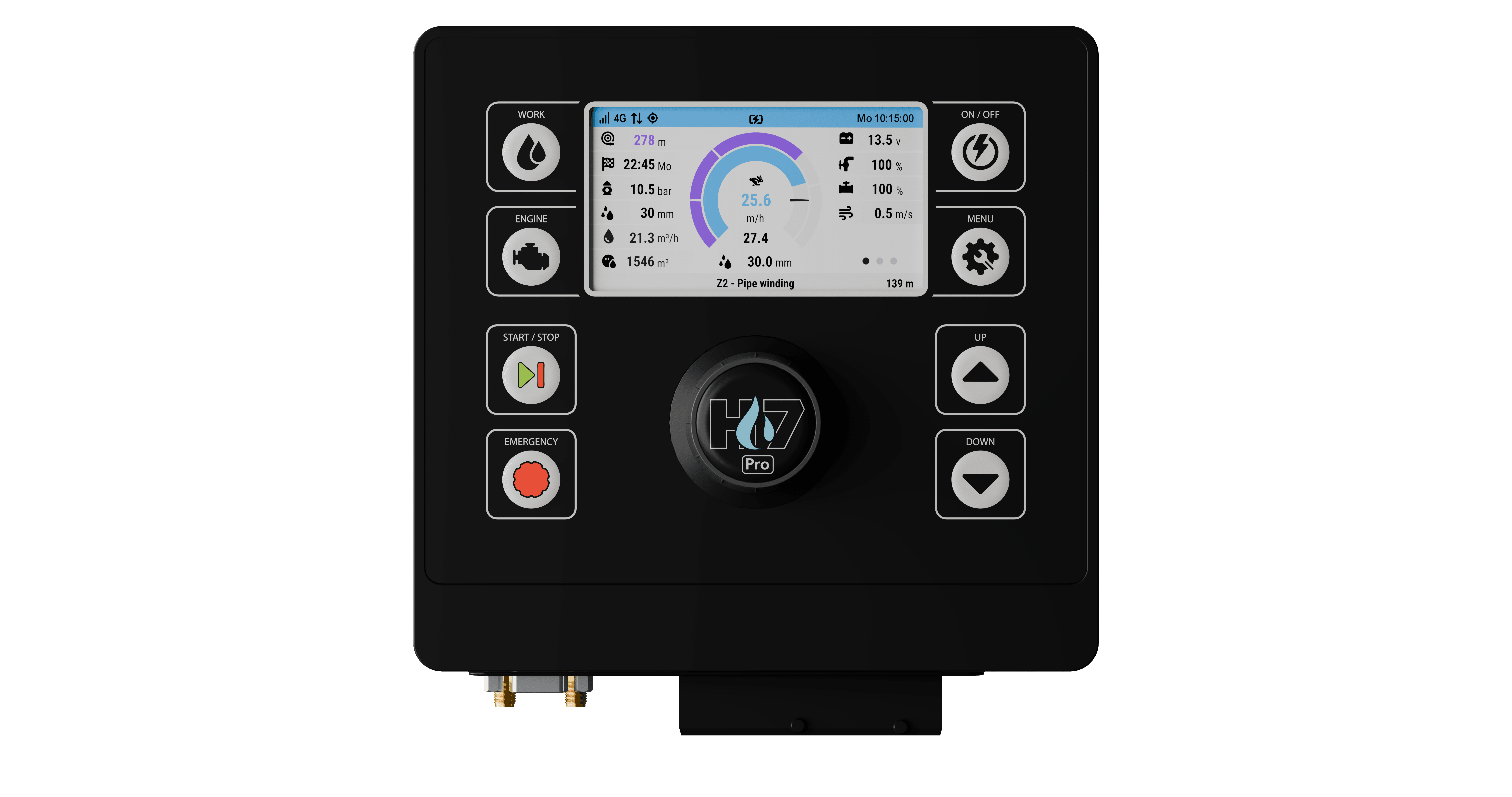

IdroMOP H7 Pro
Pumping unit control with endothermic
motor and mechanical pump
Control of irrigation machines
with turbine and hydraulic return
Irrigation machine control with integrated pump unit
CANBUS for IdroMOP peripherals
CANBUS for electronic motors
RS485 opto-isolated
LTE and 2G network coverage
GNSS Geolocation
TECHNICAL SPECIFICATIONS
MAIN FUNCTIONS
Automatic pump priming
Discharge valve management
System filling control
Periodic work cycle management
Programmable irrigation duration up to 48 hours
Motor, system and electrical protection
Instantaneous flow control
Manual motor speed setting
Automatic water pressure adjustment
Operating hours counter
Maintenance warning
High/low pressure valve management, bypass and auxiliary sprinkler
Protection and motor control for hydraulic system
Re – entry speed and/or rainfall adjustment
Management of pre/post irrigation times
Automatic pause for lack of water and/or wind intensity
Change of return speed for up to 4 sectors
Operating hours counter
Electronic sprinklers interface
GENERALS
Size
192.5 x 19.75 x 61.50 mm
Weight
850 g
Case
ABS + PC
Protection
IP66
Power supply
9 – 30 Vdc
Absorption
100 – 220 mA
RADIO
Coverage
165 countries
H7 Network
LTE-M, NB-IoT, 2G
H7 Pro Network
LTE 2G
Geolocalizzazione
GNSS
MAIN FUNCTIONS
Automatic pump priming
Discharge valve management
System filling control
Periodic work cycle management
Programmable irrigation duration up to 48 hours
Motor, system and electrical protection
Instantaneous flow control
Manual motor speed setting
Automatic water pressure adjustment
Operating hours counter
Maintenance warning
High/low pressure valve management, bypass and auxiliary sprinkler
Protection and motor control for hydraulic system
Re – entry speed and/or rainfall adjustment
Management of pre/post irrigation times
Automatic pause for lack of water and/or wind intensity
Change of return speed for up to 4 sectors
Operating hours counter
Electronic sprinklers interface
GENERALS
Size
192.5 x 19.75 x 61.50 mm
Weight
850 g
Case
ABS + PC
Protection
IP66
Power supply
9 – 30 Vdc
Absorption
100 – 220 mA
RADIO
Coverage
165 countries
H7 Network
LTE-M, NB-IoT, 2G
H7 Pro Network
LTE 2G
Geolocalizzazione
GNSS
Compatible Accessories

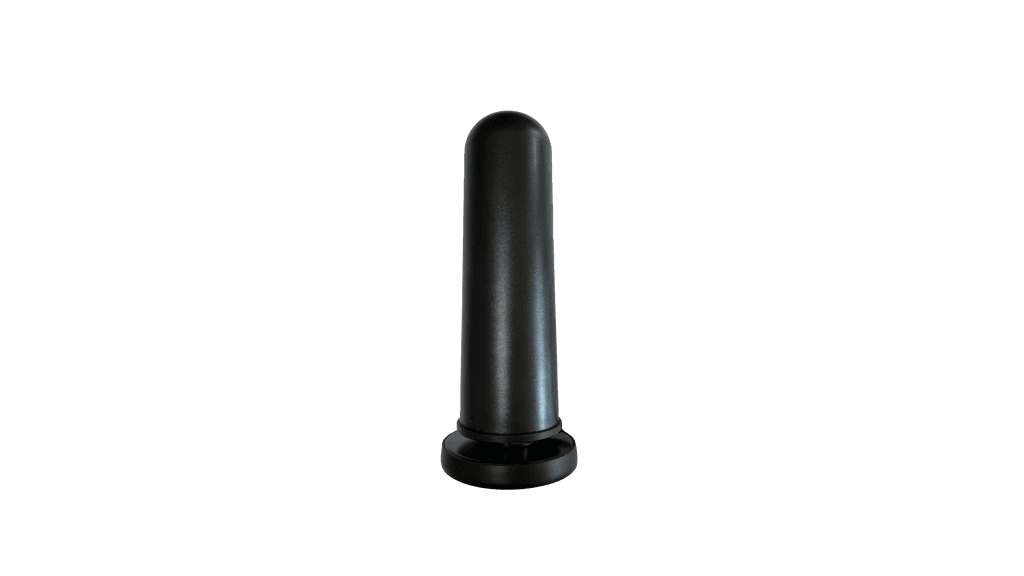

- Antennas LTE / LTE + GPS / GPS

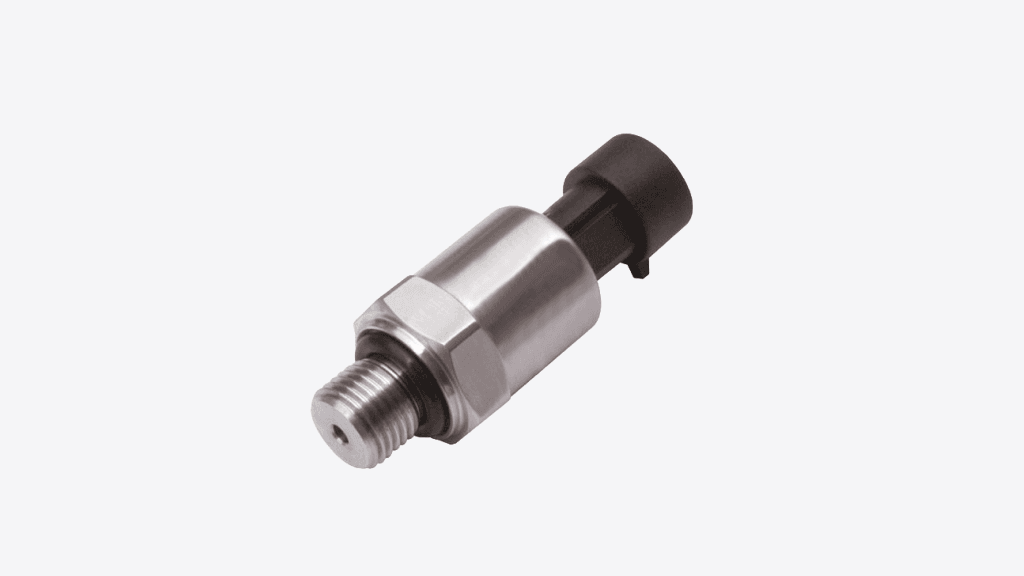

- Pressure transducer

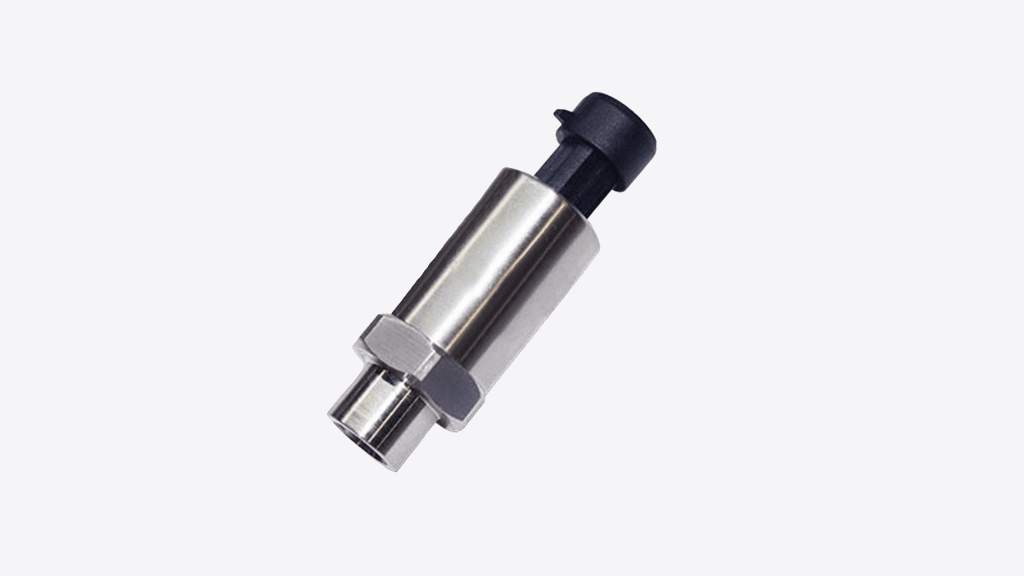

- Vacuum sensor

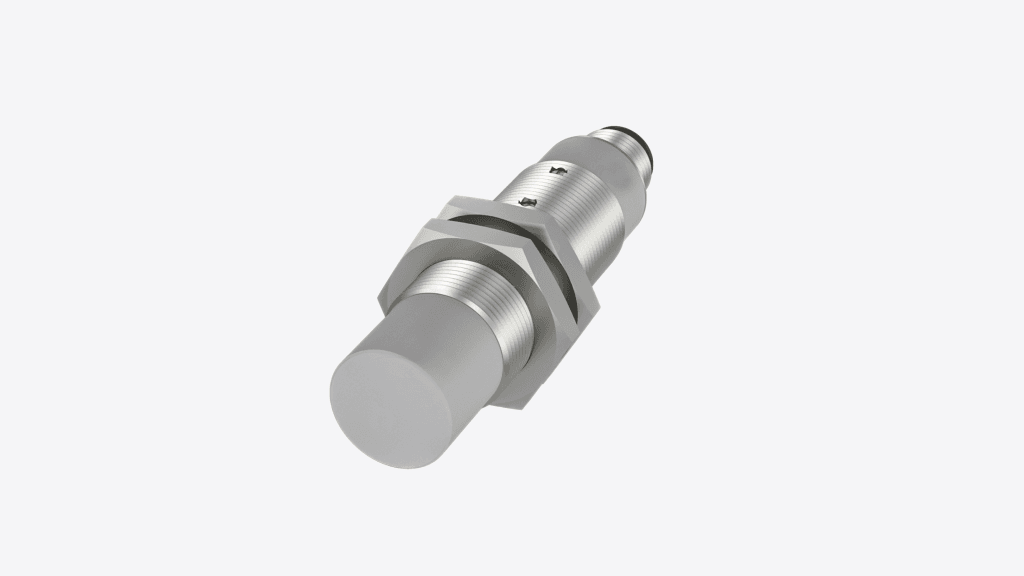

- Speed sensor

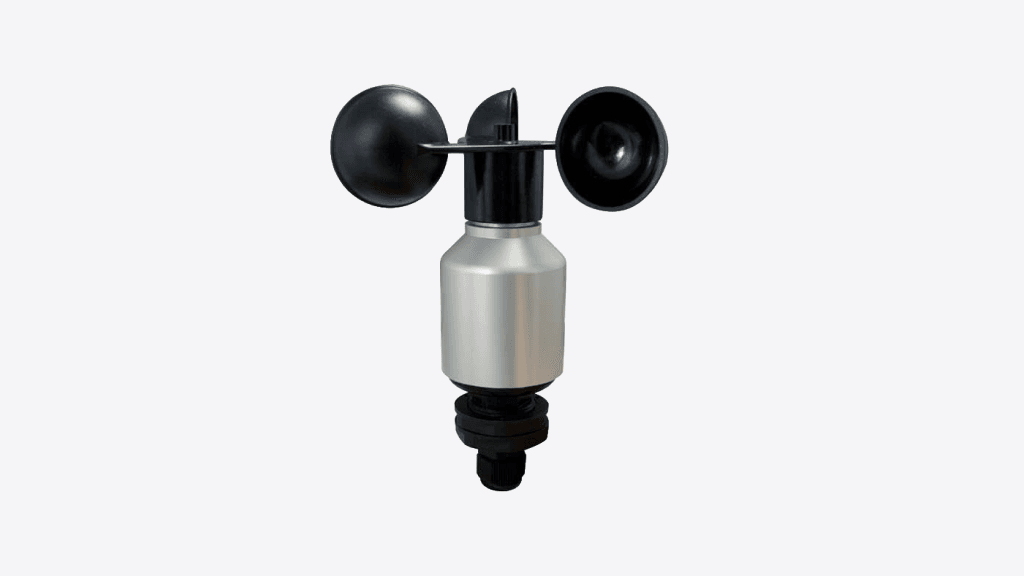

- Pulse anenometer
